Pro P90MHA Alnico 5 High Output P90 Soapbar Single Coil Pickup Set – Electric Guitar Neck & Bridge Pickups with Screws & Springs, Passive/Active Compatible, Durable Alnico Magnets for Enhanced Sound & Stability (Black) – Ideal for, Blues, Jazz

Power Mode: Uncharged

Major Material: Cotton

Wireless Property: With wireless charging function

Color: Mixed Color

Item ID: KK7903835

Origin: Guangdong,China

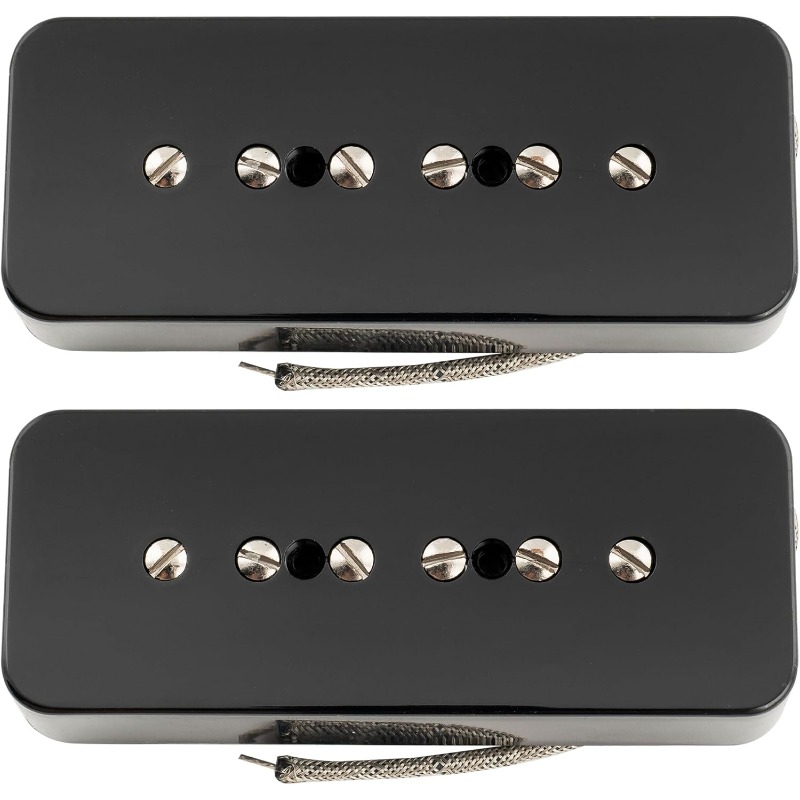

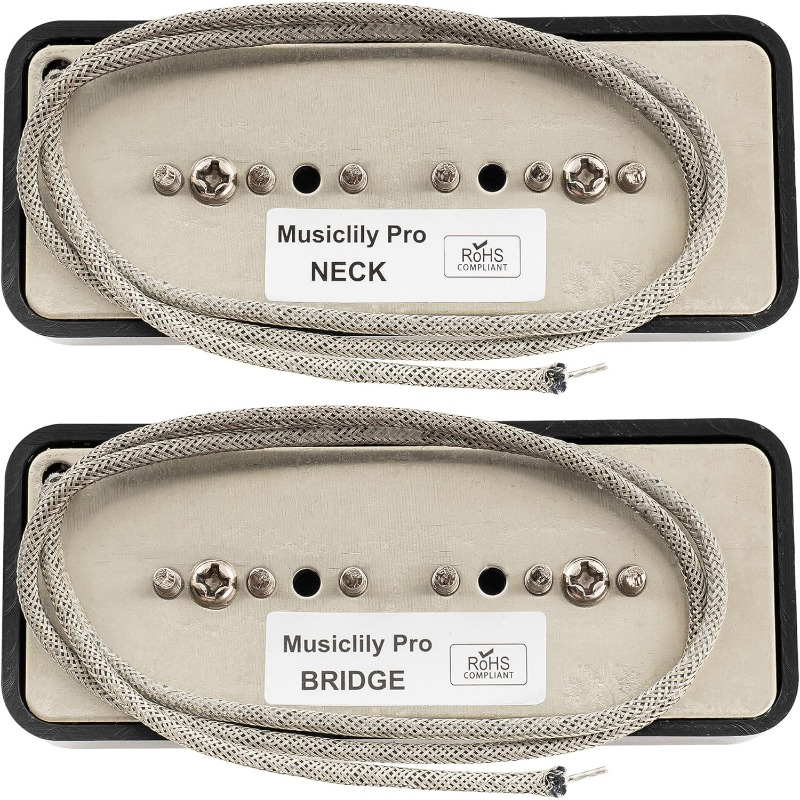

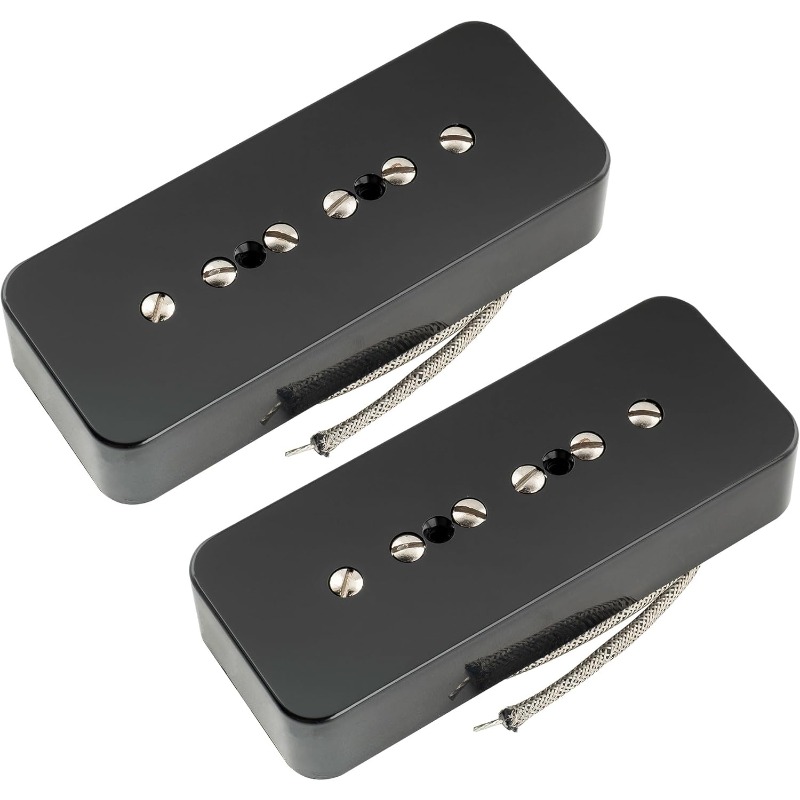

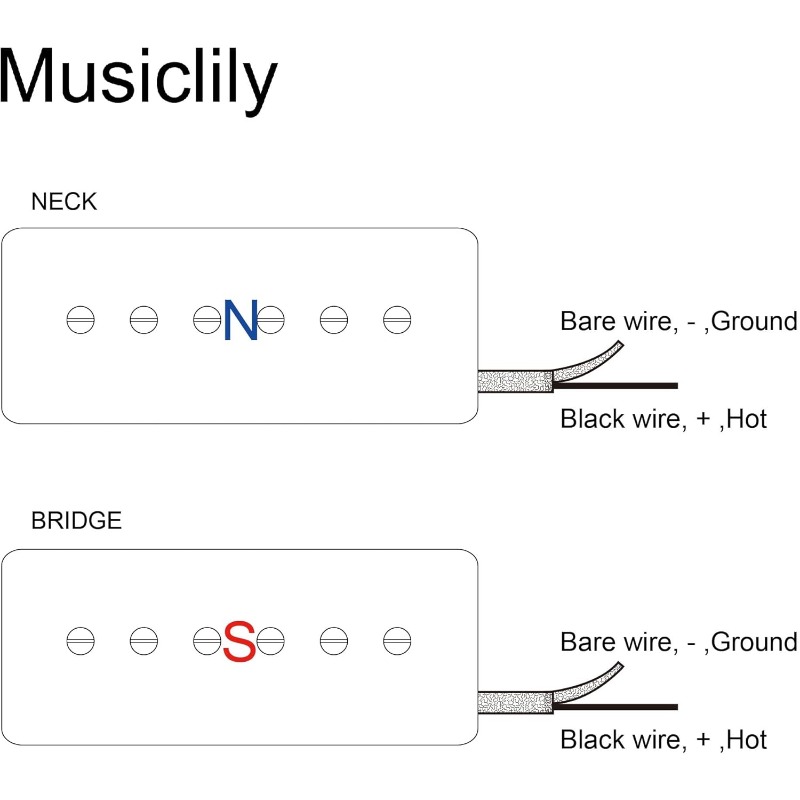

Designed for electric guitars, this pickup is suitable for both neck and bridge positions. It features a traditional soapbar style P90 single coil pickup, utilizing dual Alnico 5 bar magnets and short, wide bobbins, which contribute to its distinctive sound profile characterized by a strong midrange and higher output compared to many other single coils. The neck pickup delivers a sweet and smooth tone, while the 11.2K bridge pickup offers a robust high-output, producing thick, growling chords rich in midrange and bright harmonics. It is also reverse wound and has reverse polarity (RWRP).

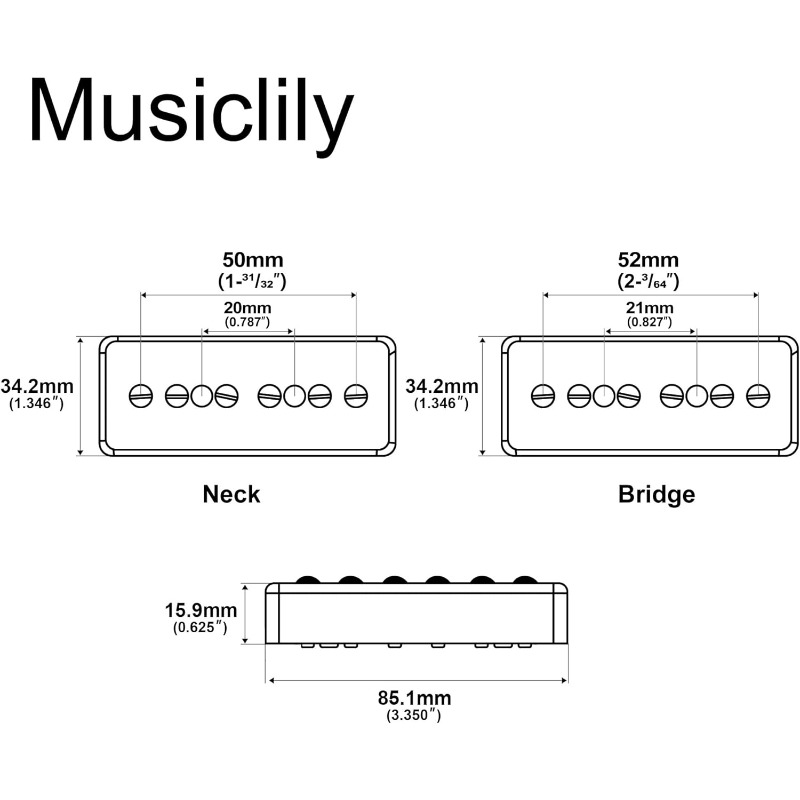

For hum cancellation, the spacing of the pole pieces is 50mm (1-31/32 inch) for the neck and 52mm (2-3/64 inch) for the bridge. The distance between the mounting screw holes is 20mm (25/32 inch) for the neck and 21mm (53/64 inch) for the bridge. The resistance values are 8K for the neck and 11.2K for the bridge, with inductance values of 5.5H for the neck and 9.0H for the bridge. The tolerance is 0.5K for single coils and 1K for humbuckers. Resistance can vary with temperature and humidity, and in extreme conditions, the tolerance may increase. The magnet used is Alnico 5, with nickel.

The package contains a set of neck and bridge pickups along with mounting accessories. Please note that the included screws may not be suitable for your needs, so it’s advisable to use your own if possible.
